Equipment Overview& Equipment Details
Equipment Details
Make, Model & Classification
| Name | Horizontal Baler |
| Model | BH - 28 |
| Classification | Baling , Compacting/Compressing |
Operations
| Description or Purpose | Baling and compacting waste, paper, cardboard and plastic to minimize transport costs |
| Operating Principles | Technical Specifications Model: ABH-28 Type: Horizontal Top Loading Weight: 7600kg Packer Ram Thrust: 37 tons @ 24o to 250 bar Control: PLC – Electric Push Button Drive: 22kw 380V -1450rpm Cycle Time: +-15 sec Pump Type: Variable Displacement pump with constant horse power control Pump Size: 100cc/rev 145ltr/min Hydraulic Tank: 550ltr Semi Automatic Wire Feeder: Optional Adjustable pressure setting Regeneration oil pressure system – rexroth Door or Continuous operation available |
| Additional Information | Dimensions: Bale Dimensions Bale Size: 1500 x 760 x 900mm Bale Weight: 450 – 560kg Carton – LD Plastic Loading Arpeture: 1200 x 760 x 900mm |

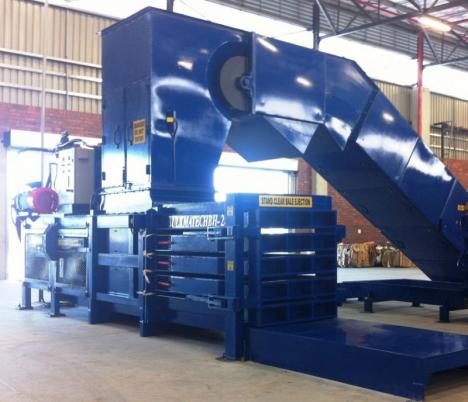

Photograph
Recyclables Processed & Productivity
Recyclables Processed
Target Recyclables and Productivity Rates
| Recyclable Type | Productivity - Loading Rate (kg per hour) |
Processing Capacity - Treatment (kg per week) |
Storage Capacity (kg per batch) |
Operating Life (machine hrs) |
|
|---|---|---|---|---|---|
|
Food Organics | ||||
|
|
Other Organics (garden etc.) | ||||
|
Flexible Plastic | 22000 | |||
|
|
Rigid Plastic | 22000 | |||
|
|
Mixed Plastics | 22000 | |||
|
|
Expanded Polystyrene | ||||
|
|
Glass | ||||
|
|
Paper | 22000 | |||
|
|
Cardboard | 22000 | |||
|
|
Mixed Paper & Cardboard | 22000 | |||
|
|
Timber | ||||
|
|
Other Recyclable | ||||
Productivity
Life Expectancy
| Operating Life - Years | 15 |
Level of Automation
| Operating Mode | Continuous |
| Degree of Automation | Fully automated - materials placed into system and process automated |
Labour Requirements
| Number of Operators | 2 |
| Operator Time (per cycle in mins.) |
0.15 |
Consumables Required
| Consumables | Strapping, Oils |
Service Requirements
| Service Freq. (Tonnes) | |
| Service Freq. (Months) | 1 |
| Downtime per Service (hours) |
Periodic Cleaning Requirements
| Periodic Cleaning | Yes - at least once every week/month depending on customer and material |
Loading & Unloading Equipment
| Manual Handling Loading | Other |
| If Other (specify) | Manual or Conveyor |
| Manual Handling Unloading | Other |
| If Other (specify) | Continous or Batch Doore |
Work Health and Safety & Permitting
Work Health and Safety
Training
| Operator Training Requirements | Familiarisation induction - by OEM/supplier |
Personal Protective Equipment
|
|
Head - Hard Hat |
|
|
Eyes - Glasses |
|
|
Breathing - Mask or Respirator |
|
|
Hands - Gloves |
|
|
Feet - Industrial Footwear |
|
|
Visibility - Hi-viz Clothing |
|
|
Other PPE |
Training Material
|
|
Printed |
|
|
Video/DVD |
|
|
Web-based |
|
|
Other |
Fencing & Enclosures
|
|
Fencing |
|
|
Bunding |
|
|
Floor Reinforcing |
|
|
Covers or Shielding |
|
|
Other |
Approvals Related to Use of Output
Important Note on Composting in NSW
In NSW, applying waste to land – including a processed waste such as compost - or using it as a fuel may trigger various regulatory requirements. Depending on the proposed use you may be required to comply with a Resource Recovery Exemption or need to hold an environment protection licence, and pay the waste levy.
While there is a Compost Exemption (2014) it is important to note that drying or dehydrating food waste, or any other compostable waste, is specifically excluded from consideration under this exemption. Drying or dehydrating equipment uses externally supplied energy to heat and ventilate food waste or any other compostable waste in order to rapidly dry the waste material over a short time period (typically 24 to 48 hours), either with or without the addition of an inoculum. If you are interested in this type of equipment you should refer to the resource recovery exemptions for information on lawful use of outputs.
If it is intended to use the material as a fuel, it must comply with the NSW Energy from Waste Policy Statement. http://www.epa.nsw.gov.au/waste/140056enfromwasteps.htm
Installation Specifications
Installation Specifications
Utilities
|
|
Power | 380 Volts | 22 |
|
|
Water | KPa | l/min |
|
|
Sewer | l/min | |
|
|
Compressed Air | KPa | CuM/min |
|
|
Gas | Kjoule/hr |
Dimensions
| Length | 0 cm |
| Width | 0 cm |
| Height | 0 cm |
| Footprint | 0 sq.m |
| Weight | 0 kg |
| Lateral clearance | 0 cm |
| Overhead clearance | 0 cm |
Service Offering
|
|
Supply |
|
|
Installation |
|
|
Maintenance |
|
|
Product Uplift |
|
|
Training |
|
|
Other |
| If Other |
In-Feed & Out-Feed Characteristics
In-Feed Characteristics
Acceptable In-feed Characteristics
|
|
Loose |
|
|
Bundled |
|
|
Tied |
|
|
Wet |
|
|
Dry |
|
|
Shredded |
|
|
Lightly Soiled |
|
|
Heavily Soiled |
|
|
Other |
Exclusions
| Excluded Materials | Glass, Tyres, Metal, Others |
Out-Feed Characteristics
Out-feed Product Characteristics - Shape
|
|
Rectangular Prism |
|
|
Cylindrical |
|
|
Other |
Out-feed Product Characteristics - Container
|
|
Bag/Sack |
|
|
Wrapped |
|
|
Bin |
|
|
Other |
| If Other | Strapped |
Out-feed Dimensions
| Length | 1500 cm |
| Width | 900 cm |
| Height | 760 cm |
| Footprint | sq.m |
| Weight | 550 kg |
| SG | specific gravity |
| Density | kg/Cu.m |
| By-product and Wastes |
Amenity and Nuisance Issues
|
|
Noise |
|
|
Odour |
|
|
Vibration |
|
|
Light |
|
|
Heat |
|
|
Other |
Market/Recipients
|
|
Reprocessor |
|
|
End Market |
|
|
Other |
| If Other | Recyclers, Manufacturers, Distributors, Mills |
OEM & Supplier Information
OEM & Supplier Information
OEM Company Details
| Company Name | Australian Recycling Equipment |
| Postal Address | 35 Caravel Court |
| State | QLD |
| Country | Australia |
| Postcode | 4163 |
| Web Site | ozrecyclingequipment.com |
| Contact Name | Shane McClelland |
| Contact Telephone | 0438902011 |
| Contact Email | shane@ozquip.com |
Supplier Company Details
| Company Name | Australian Recycling Equipment |
| Postal Address | 35 Caravel Court |
| State | QLD |
| Country | Australia |
| Postcode | 4163 |
| Web Site | ozrecyclingequipment.com |
| Contact Name | Shane McClelland |
| Contact Telephone | 0438902011 |
| Contact Email | shane@ozquip.com |
