Baler - Bramidan - Wastech B20
Baling
, Compacting/Compressing
Equipment Overview& Equipment Details
Equipment Details
Make, Model & Classification
| Name | Baler - Bramidan |
| Model | Wastech B20 |
| Classification | Baling , Compacting/Compressing |
Operations
| Description or Purpose | The B20 is a highly flexible machine, able to be used in many different applications such as large retail stores and warehouses. This baler has a wide filling opening for handling larger boxes. The chamber is equipped with rows of barbs to ensure that waste material stays compacted even when the platen is raised. The B20 was created with easy servicing in mind and is supported by Wastech's nation wide service and support network. Call 1800 465 465 or visit www.wastech.com.au for more information. |
| Operating Principles | Bale Size LxWxH (mm): 1200 x 800 x 850 Bale Weight - Cardboard (kg): 200-250 Bale Weight - Plastic (kg): 250-300 Press Force: 20 tonne Power Supply: 415V 20A |
| Additional Information |

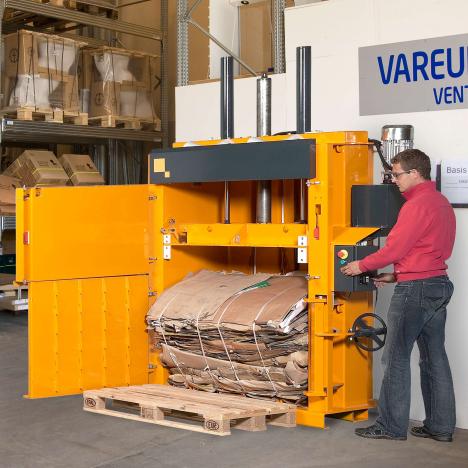

Photograph
Recyclables Processed & Productivity
Recyclables Processed
Target Recyclables and Productivity Rates
| Recyclable Type | Productivity - Loading Rate (kg per hour) |
Processing Capacity - Treatment (kg per week) |
Storage Capacity (kg per batch) |
Operating Life (machine hrs) |
|
|---|---|---|---|---|---|
|
Food Organics | ||||
|
|
Other Organics (garden etc.) | ||||
|
Flexible Plastic | 250-300 | |||
|
|
Rigid Plastic | 250-300 | |||
|
|
Mixed Plastics | 250-300 | |||
|
|
Expanded Polystyrene | 150 | |||
|
|
Glass | ||||
|
|
Paper | 200-250 | |||
|
|
Cardboard | 200-250 | |||
|
|
Mixed Paper & Cardboard | ||||
|
|
Timber | ||||
|
|
Other Recyclable | ||||
Productivity
Life Expectancy
| Operating Life - Years | 10 |
Level of Automation
| Operating Mode | Batch |
| Degree of Automation | Semi-automated - operator attendance required for in-feed and operations |
Labour Requirements
| Number of Operators | 1 |
| Operator Time (per cycle in mins.) |
0.33 |
Consumables Required
| Consumables | Baling Tape (Strapping) |
Service Requirements
| Service Freq. (Tonnes) | |
| Service Freq. (Months) | 12 |
| Downtime per Service (hours) | 1 |
Periodic Cleaning Requirements
| Periodic Cleaning | General clear of work area |
Loading & Unloading Equipment
| Manual Handling Loading | Manual |
| Manual Handling Unloading | Other |
| If Other (specify) | Machine ejection onto pallet |
Work Health and Safety & Permitting
Work Health and Safety
Training
| Operator Training Requirements | Familiarisation induction - by OEM/supplier |
Personal Protective Equipment
|
|
Head - Hard Hat |
|
|
Eyes - Glasses |
|
|
Breathing - Mask or Respirator |
|
|
Hands - Gloves |
|
|
Feet - Industrial Footwear |
|
|
Visibility - Hi-viz Clothing |
|
|
Other PPE |
| If Other | Closed Toe Shoes |
Training Material
|
|
Printed |
|
|
Video/DVD |
|
|
Web-based |
|
|
Other |
Fencing & Enclosures
|
|
Fencing |
|
|
Bunding |
|
|
Floor Reinforcing |
|
|
Covers or Shielding |
|
|
Other |
Approvals Related to Use of Output
Important Note on Composting in NSW
In NSW, applying waste to land – including a processed waste such as compost - or using it as a fuel may trigger various regulatory requirements. Depending on the proposed use you may be required to comply with a Resource Recovery Exemption or need to hold an environment protection licence, and pay the waste levy.
While there is a Compost Exemption (2014) it is important to note that drying or dehydrating food waste, or any other compostable waste, is specifically excluded from consideration under this exemption. Drying or dehydrating equipment uses externally supplied energy to heat and ventilate food waste or any other compostable waste in order to rapidly dry the waste material over a short time period (typically 24 to 48 hours), either with or without the addition of an inoculum. If you are interested in this type of equipment you should refer to the resource recovery exemptions for information on lawful use of outputs.
If it is intended to use the material as a fuel, it must comply with the NSW Energy from Waste Policy Statement. http://www.epa.nsw.gov.au/waste/140056enfromwasteps.htm
Installation Specifications
Installation Specifications
Utilities
|
|
Power | 240 Volts | |
|
|
Water | KPa | l/min |
|
|
Sewer | l/min | |
|
|
Compressed Air | KPa | CuM/min |
|
|
Gas | Kjoule/hr |
Dimensions
| Length | 176 cm |
| Width | 102.5 cm |
| Height | 277 cm |
| Footprint | 1.804 sq.m |
| Weight | 1240 kg |
| Lateral clearance | 50 cm |
| Overhead clearance | 0 cm |
Service Offering
|
|
Supply |
|
|
Installation |
|
|
Maintenance |
|
|
Product Uplift |
|
|
Training |
|
|
Other |
| If Other |
In-Feed & Out-Feed Characteristics
In-Feed Characteristics
Acceptable In-feed Characteristics
|
|
Loose |
|
|
Bundled |
|
|
Tied |
|
|
Wet |
|
|
Dry |
|
|
Shredded |
|
|
Lightly Soiled |
|
|
Heavily Soiled |
|
|
Other |
Exclusions
| Excluded Materials |
Out-Feed Characteristics
Out-feed Product Characteristics - Shape
|
|
Rectangular Prism |
|
|
Cylindrical |
|
|
Other |
Out-feed Product Characteristics - Container
|
|
Bag/Sack |
|
|
Wrapped |
|
|
Bin |
|
|
Other |
| If Other | Strapped With Baling Tape |
Out-feed Dimensions
| Length | 120 cm |
| Width | 80 cm |
| Height | 85 cm |
| Footprint | 0.96 sq.m |
| Weight | 200-300 kg |
| SG | specific gravity |
| Density | kg/Cu.m |
| By-product and Wastes |
Amenity and Nuisance Issues
|
|
Noise |
|
|
Odour |
|
|
Vibration |
|
|
Light |
|
|
Heat |
|
|
Other |
Market/Recipients
|
|
Reprocessor |
|
|
End Market |
|
|
Other |
OEM & Supplier Information
OEM & Supplier Information
OEM Company Details
| Company Name | Bramidan |
| Postal Address | Industrivej 69 |
| State | Bramming |
| Country | Denmark |
| Postcode | 6740 |
| Web Site | http://bramidan.com/ |
| Contact Name | |
| Contact Telephone | |
| Contact Email |
Supplier Company Details
| Company Name | Wastech Engineering |
| Postal Address | 33 Wedgewood Rd |
| State | VIC |
| Country | Australia |
| Postcode | 3803 |
| Web Site | wastech.com.au |
| Contact Name | Wastech Engineering |
| Contact Telephone | +61 (0)3 8787 1600 |
| Contact Email | bparker@wastech.com.au |
